Headlamp Housing Lightweighting: Topology-Driven Ribbing for Injection-Molded Automotive Lighting
.avif)
The Part

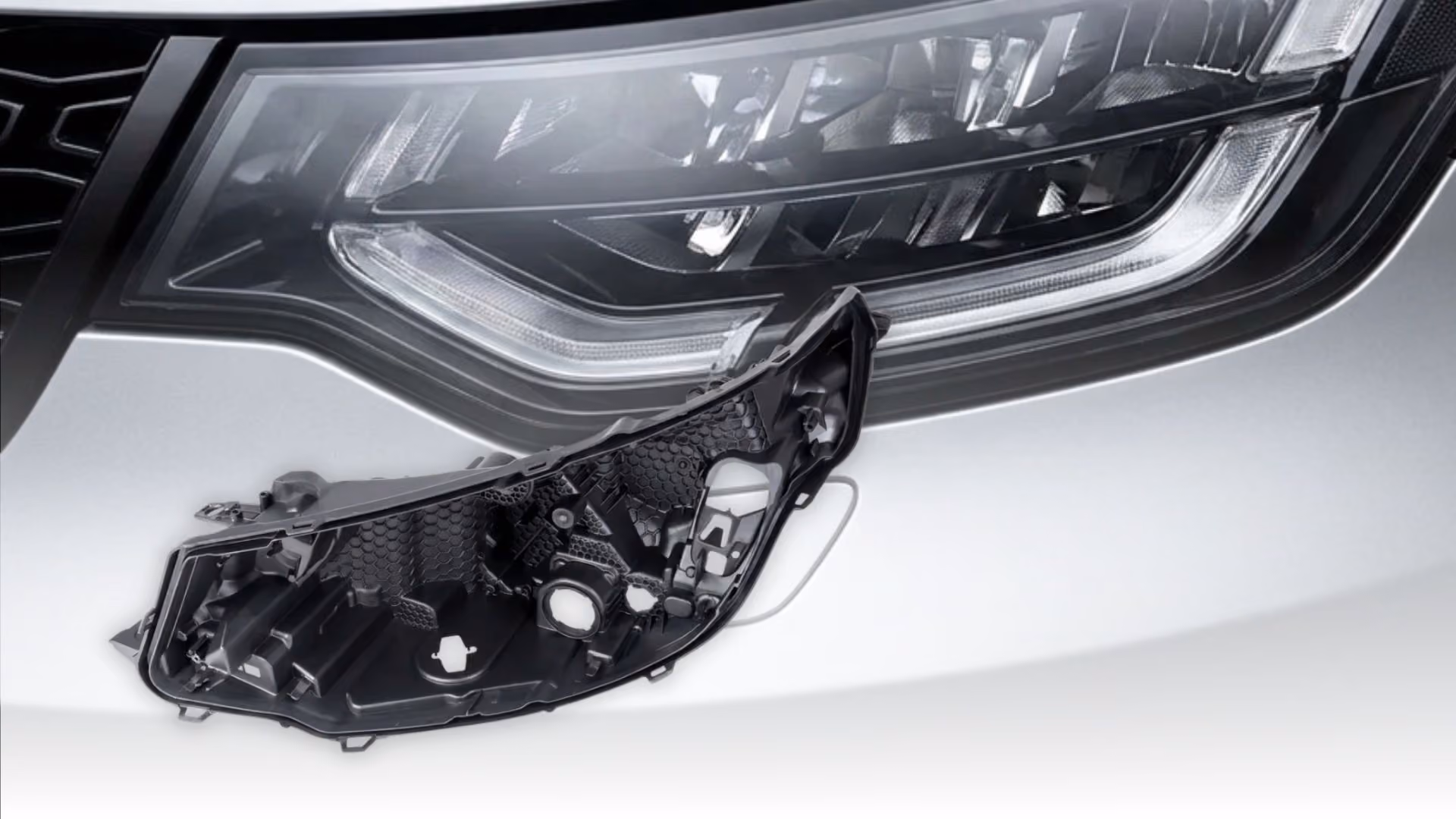

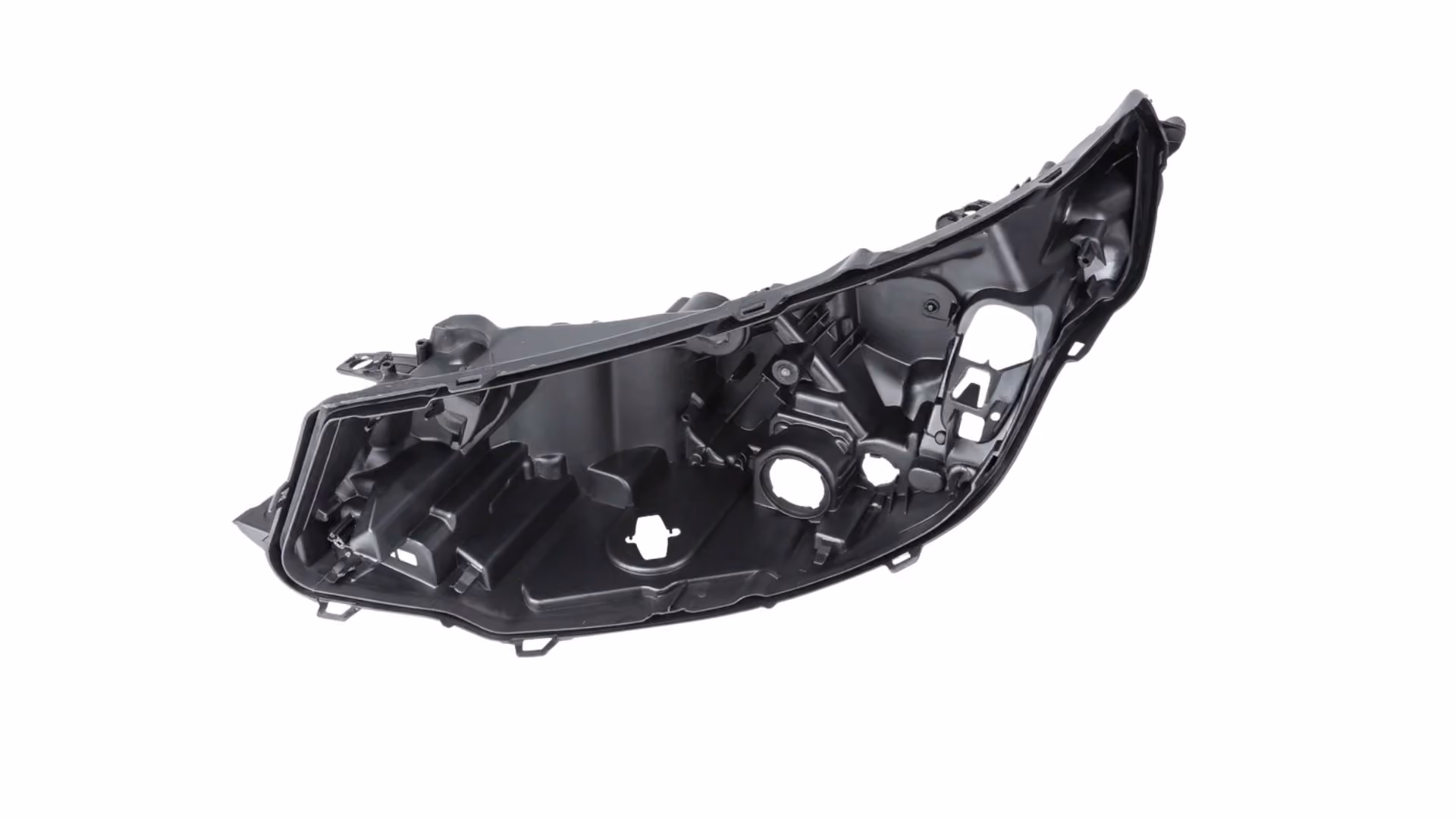

The headlamp rear housing is the injection-molded structural carrier behind the lens: it holds the optical module in alignment on its front face and carries the mounting bosses, connector bores, and ribbing on its hidden back face. PA66-GF30 was retained for both the legacy and optimized geometry, since the mass reduction targeted here comes entirely from geometry, not material substitution.
.avif)
The Challenge
Headlamp housings sit inside a tight regulatory and multi-physics envelope: beam pattern (ECE R112) demands dimensional fidelity on the optical-facing surface, while the same part must survive under-hood thermal exposure, vibration fatigue, and low-speed impact loading. Legacy housings manage this by thickening walls uniformly, a safe but heavy approach that leaves little room for lightweighting.
PA66-GF30 shrinks unevenly with fiber flow direction, and any new rib pattern on the back face can still warp the front face where beam alignment and lens sealing matter most. The engineering team needed a design that respected this coupling while meeting impact retention requirements without fragment shedding or fixation detachment.
The Approach
The team ran the workflow in two phases. Phase 1 explored more than 50 honeycomb and radial rib variants in parallel against the single hardest load case, low-speed frontal impact, using Manufacturing-Driven Design to enforce draft angles and near-constant wall thickness from the midsurfaced geometry, and Simulation-Driven Design to steer rib height and density in real time. Phase 2 reran the same workflow across the full load case set (vibration fatigue, thermal cycling, and impact together), and the final design was validated in LS-Dyna against all three load cases simultaneously.
Key Results
- 16% mass reduction (Est.), from 340 g to 285 g, with the safety factor improving from 1.4 to 1.7 under the impact load case
- 50+ rib variants explored in parallel, versus 2 to 3 concepts in a conventional sequential workflow
- ~8x faster engineering lead time, from 100 hours to 12 hours
The case study includes the complete before/after metrics table and the full multi-load-case LS-Dyna validation data.
.avif)

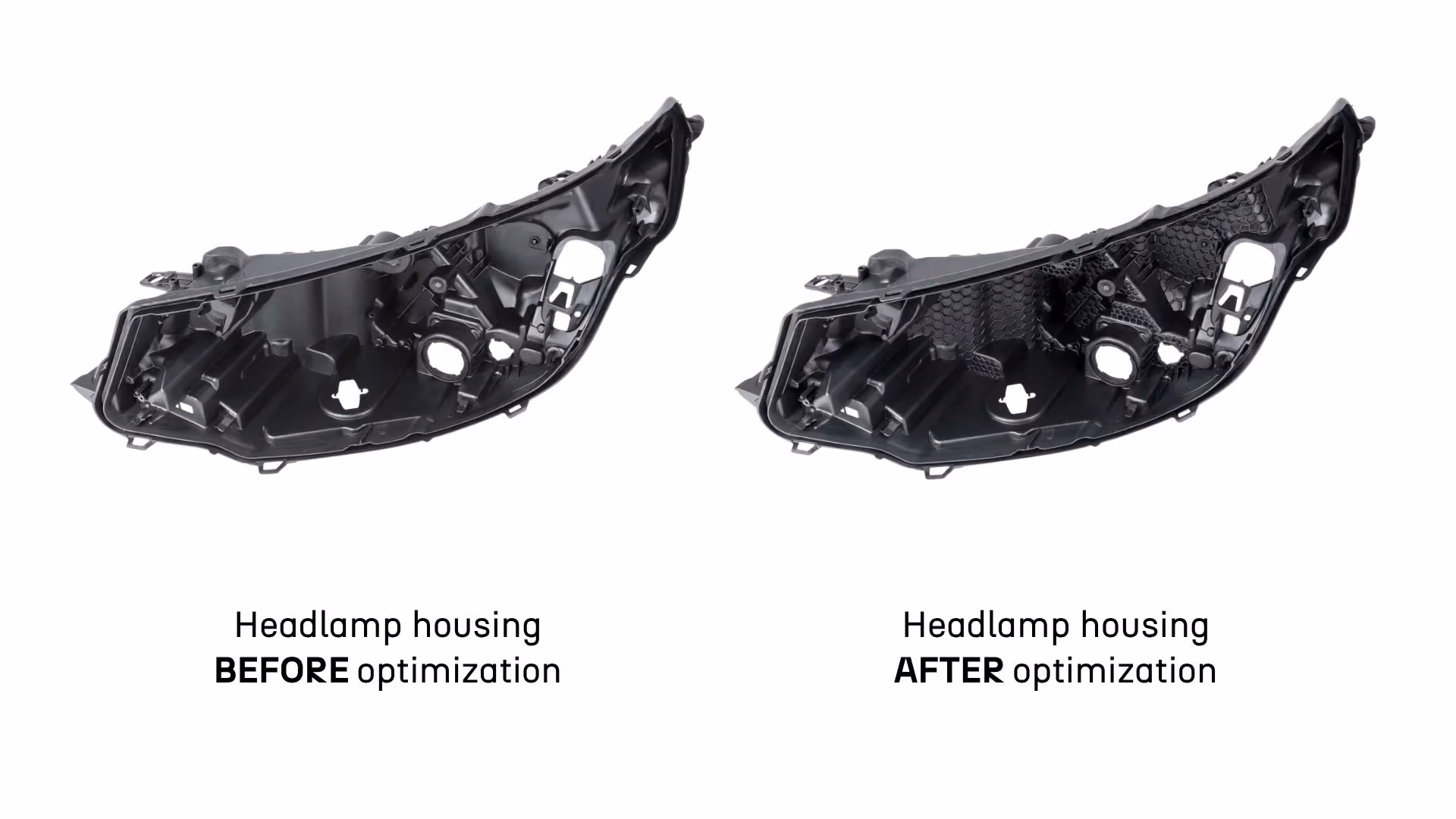

Headlamp before and after optimization with Cognitive Design
Why It Matters
When rib geometry is optimized against impact, vibration, and thermal loads together instead of sequentially, mass reduction stops competing with beam alignment and impact retention, it becomes part of the same decision. For headlamp housings and similar dual-constraint automotive lighting parts, this is what turns a heavier, over-thickened legacy design into a validated, lighter one without a late-stage compliance surprise.
Download the case study to see the complete metrics table, the full multi-load-case LS-Dyna validation data, and the rib exploration methodology.
Interested in reading the full case study?
Fill in the form below to instantly receive the full case study.
Aeronautics Challenges We Address
FAQs
Explore our frequently asked questions to understand how our software can benefit you.
Manufacturing-driven design builds process constraints, such as draft or overhang angles, directly into the exploration phase rather than checking them afterward, which reduces the amount of rework needed once a result is obtained.
It is a validation approach that works directly on an implicit representation of the geometry rather than a discretized mesh, which avoids remeshing at every iteration and significantly speeds up design loops.
A single optimization pass only reveals one of the possible solutions for a given set of loads and constraints. Running several optimization routes in parallel, from the same load environment, makes it possible to compare genuinely different geometric families on mass, stress and manufacturability, rather than having to accept or reject a single result.
Lightweighting is the broader goal of reducing a part's mass. Topology optimization is one method used to achieve it, one that computes material distribution from a design space and load cases rather than adjusting an existing shape.
Glass-fiber-reinforced resins such as PA66-GF30 typically require deeper draft angles than unfilled polymers, generally at least 1.5 to 2 degrees, to account for higher mold shrinkage stress. Rib thickness is usually kept below 50 to 60 percent of the nominal wall to avoid sink marks, with wall thickness held as close to constant as possible to control fiber-driven shrinkage variation across the part.
Glass fibers align with the resin flow front during injection molding and shrink less along that axis than across it. Adding or changing ribs on one face changes local flow and cooling, which can differentially warp a different, dimensionally critical face of the same part, even when the rib itself sits on the hidden side. This coupling is why rib design for glass-filled parts cannot be treated as a purely structural exercise.
Rather than validating each load case independently, the optimized geometry is first proven against the single hardest constraint, typically impact, in a solver such as LS-Dyna. The same geometry is then re-validated across the full load case set, including vibration fatigue and thermal cycling, in a second pass. This staged approach confirms that performance gained on the hardest case is not lost once the remaining loads are reintroduced.
