Lightweight Helicopter Armament Mount Optimization
The Part
A swing-arm assembly for a helicopter armament mount, carrying weapon stations through dynamic flight maneuvers and withstanding lateral shock loads from weapon recoil at high cycle counts. The component interfaces with the pivoting swing-arm mechanism and locking pins, constraining the preserve regions regardless of the manufacturing approach selected. The legacy design was machined from steel billet, a process that guaranteed functional compliance but produced a geometry that carried far more mass than the load environment required.
The Challenge
Weight on a helicopter translates directly into mission compromise: every kilogram added to the airframe subtracts from ammunition capacity, sensor payload, or operational range. The armament mount was not failing; it was over-designed for a load environment that a lighter geometry could handle equally well.
The client faced a constrained trade-off space. Casting offered mass savings but required expensive tooling and lead time. Machining from billet wasted material and restricted geometry. Additive manufacturing offered design freedom but introduced cost and qualification questions. Without a rapid way to evaluate all three simultaneously, the path of least resistance was to accept the existing design.
The Approach

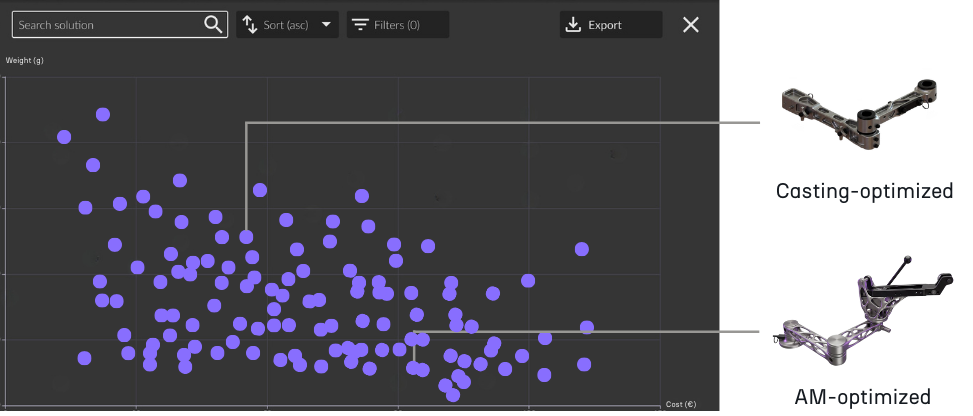

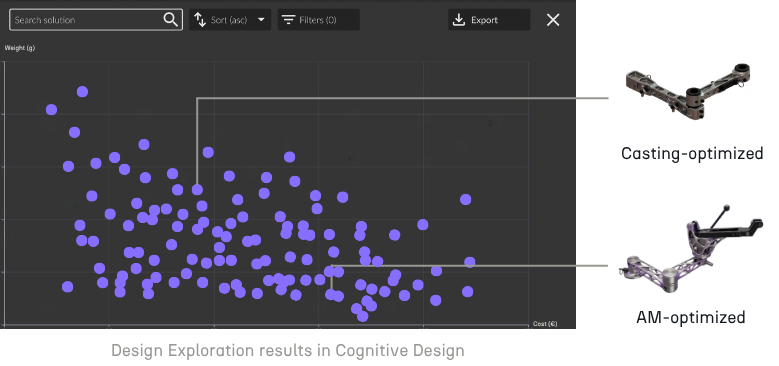

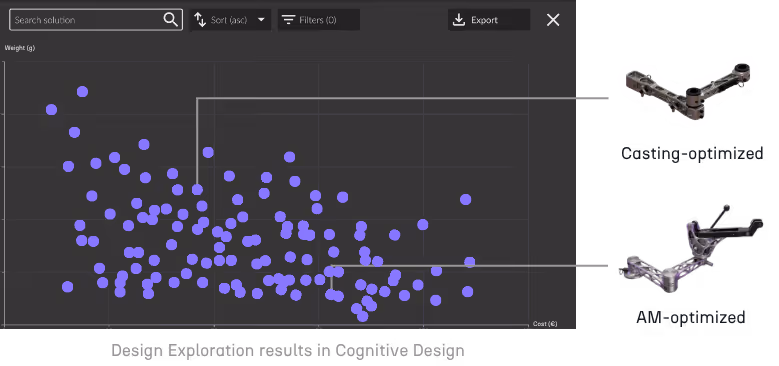

The engineering team explored over 60 design variants across three manufacturing processes simultaneously within a single Cognitive Design workflow, with topology optimization, manufacturing constraints, and structural validation running concurrently. The material and process combination that delivered the best structural performance per unit mass was not the one initially evaluated as the primary candidate.
The case study documents the multi-process exploration setup, the load case configuration under flight and recoil conditions, and the material and process selection logic that led to the final design.
.png)
Key Results
- 38% mass reduction with full structural validation under dynamic firing and flight loads
- Under 1 week of engineering lead time, versus 12 weeks with conventional workflows
- Torsional rigidity maintained within 2% of specification across all validated load cases
The case study includes the complete variant exploration table, material and process selection rationale, and FEA validation results under all load cases.
Why It Matters
Defense components carry inherent conservatism in their design culture, and that conservatism is appropriate when it addresses genuine uncertainty. This project demonstrates what changes when the uncertainty is replaced with quantified engineering data: the design can become lighter without accepting any additional risk.
Download the case study to see the multi-process exploration results, the material selection rationale, and the full structural validation data.
Interested in reading the full case study?
Fill in the form below to instantly receive the full case study.
Aeronautics Challenges We Address
FAQs
Explore our frequently asked questions to understand how our software can benefit you.
In a documented armament mount case, the optimized stainless steel swing arm achieved a 32% mass reduction, dropping from 2.45 kg to 1.71 kg, while maintaining torsional rigidity within 2% of specification and reducing peak stress by 8%. All pivot interfaces and locking mechanism geometry were preserved throughout the optimization process.
By integrating simulation, topology optimization, and manufacturability analysis into a single parametric workflow, Cognitive Design compressed armament mount engineering from a 12-week conventional cycle to 2 weeks, an 83% lead time reduction. Parallel evaluation of material candidates and manufacturing pathways replaced sequential CAD/FEA/manufacturing review cycles entirely.
In the helicopter armament mount case, the organic self-supporting topology generated by Cognitive Design removed the need for casting dies or complex fixturing entirely, enabling rapid production of flight-ready components without capital-intensive tooling investment. This is particularly relevant for low-volume defense programs where tooling amortization across small batch sizes is economically impractical.
Cognitive Design evaluates multiple material candidates concurrently within the same generative session. For the armament mount, Ti-6Al-4V and stainless steel were compared across machining, casting, and additive manufacturing routes simultaneously, with manufacturability rules embedded from the first optimization pass. This eliminates parallel engineering tracks per material.
Yes. Cognitive Design offers on-premise deployment specifically for defense and regulated sectors where data sovereignty, export control compliance, and IP security requirements make cloud-based tools unsuitable. This ensures engineering workflows for sensitive structural and armament components remain fully within the client's secure infrastructure throughout the design process.
