Milling Cutter Optimization For Industrial Manufacturing
%20Template_Use_Case_Short.avif)
The Part
A high-speed milling tool head for an industrial CNC machining center, designed to carry carbide cutting inserts at the periphery and transmit torque from the spindle through to the cutting edges. The component operates under combined rotational, axial, and radial cutting loads, and its mass directly governs maximum achievable spindle speed. Excess rotational inertia restricts RPM, induces chatter, and accelerates bearing wear, making mass reduction a functional performance target, not only a cost objective.
The Challenge
The legacy design was over-built. The engineering team knew it, but conventional workflows made evaluating alternative geometries expensive: each manufacturing route required a separate CAD model, a separate FEA campaign, and a separate DFM review, consuming days per concept iteration.
The client also needed confidence that the selected geometry would be producible at scale, which meant manufacturability constraints had to be embedded in the optimization from the start, not appended after the topology was already committed.
The Approach

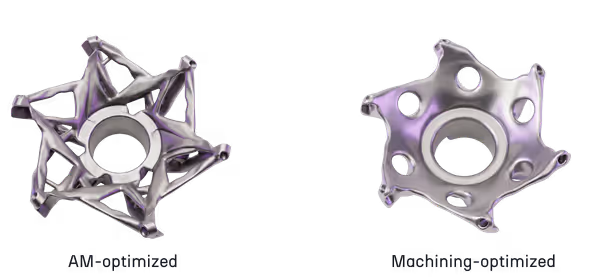

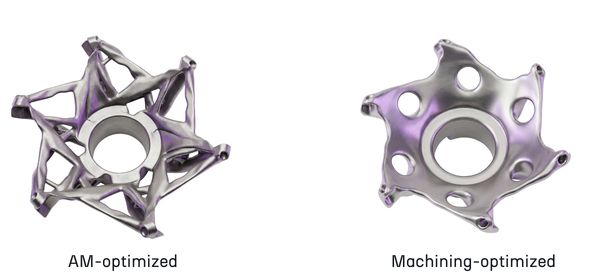

The engineering team explored two distinct manufacturing strategies in parallel within a single Cognitive Design workflow: an organic, lattice-oriented topology for DMLS additive manufacturing, and a pocket-based topology for 5-axis CNC machining. Both were generated simultaneously from the same load envelope, with process-specific constraints applied from the first iteration. The selected manufacturing route was not initially the team's primary hypothesis.
The case study documents the parallel exploration setup, the constraint configurations for each manufacturing route, and the selection rationale that guided the final design decision.
Key Results
- 30% mass reduction, with 95% of original stiffness retained
- 50% engineering lead time reduction, from 5 days to 2.5 days
- Reusable parametric workflow enabling future tool variants to be optimized in minutes
The case study includes the full multi-process exploration results, the per-route cost and performance comparison, and the parametric workflow architecture for future iterations.
.jpg)
Why It Matters
When manufacturing constraints are embedded at the optimization stage rather than applied as a post-process correction, the selected geometry is immediately production-ready, and the workflow that generated it can be reused across an entire tool family. This project demonstrates both outcomes simultaneously.
Download the case study to see the parallel exploration configuration, the DMLS versus CNC comparison, and the reusable workflow architecture.
Interested in reading the full case study?
Fill in the form below to instantly receive the full case study.
Aeronautics Challenges We Address
FAQs
Explore our frequently asked questions to understand how our software can benefit you.
In a documented cutting tool case, the optimized stainless steel milling head achieved a 30% mass reduction in rotational mass compared to the baseline design, while retaining 95% of original stiffness under high torque and radial cutting forces. Reduced rotational mass directly increases maximum achievable spindle speeds and reduces bearing wear over time.
Yes. Cognitive Design generated topology-optimized geometries for both DMLS additive manufacturing and 5-axis CNC machining within a single generative study, with manufacturing constraints embedded from the first iteration. This simultaneous multi-process exploration eliminates the parallel engineering programs typically required when evaluating AM versus subtractive routes for cutting tool components.
Cognitive Design compressed design exploration and validation from 5 days with conventional software to 2.5 days, a 50% reduction in engineering time. The integrated workflow combining topology optimization, simulation-driven design, and manufacturability analysis allowed the team to evaluate 10x more concepts than previously feasible within the same calendar window.
Excess rotational mass limits maximum spindle RPM, increases vibration and chatter during high-speed cutting, and accelerates bearing wear, all of which directly reduce machining precision and tool life. A 30% reduction in rotational mass, as achieved in the documented case, enables higher spindle speeds, better surface finish, and extended bearing service intervals.
Every design iteration is automatically logged in the Design Explorer against configurable KPIs including mass, structural stiffness, stress distribution, manufacturing feasibility, cost, and carbon footprint. For cutting tool applications, rotational mass, deflection under cutting forces, and process-specific manufacturability scores are evaluated simultaneously across all candidates.
