What Is Concept Exploration in Mechanical Engineering?

Every mechanical engineering program treats the period between a specification and the first CAD model as a formality, yet the decisions made there fix most of a part's eventual cost, mass, and manufacturability before a single detailed drawing exists. Concept exploration is the mechanical engineering phase in which multiple candidate geometries are generated and evaluated concurrently on performance, cost, CO2, and manufacturability, before one is selected and passed to detailed CAD. In most organizations, this phase does not exist as a distinct step. The specification leads directly into a single modeled geometry, which becomes the concept by default rather than by comparison, long before enough alternatives were ever compared.

‍

Where Concept Exploration Sits Between Specification and Detailed CAD

Concept exploration occupies a specific position in the engineering process. It begins once requirements and specifications are frozen, and it ends once one candidate geometry is selected and handed off to detailed CAD. Before this phase, the design space remains undefined. After it, the design space is closed, and the engineer works inside a single chosen geometry. In most engineering organizations today, this boundary does not exist as a distinct phase. The specification leads directly into the first CAD model, which becomes the concept by default rather than by comparison.

This missing boundary has a measurable cost. Committing to a geometry before evaluating manufacturability, cost, and CO2 means these constraints only surface once the part reaches tooling or industrialization, at a point where a wrong choice is expensive to reverse. A wrong geometry committed without evaluating manufacturability can cost tens of thousands of euros in downstream redesign, a cost that compounds with every stage the error survives before it is caught.

Once concept exploration exists as a distinct phase, the sequence changes structurally rather than cosmetically. The engineer defines the design space, load cases, manufacturing constraints, and target KPIs once, then generates and compares multiple candidate geometries against that same set of criteria before selecting one. Detailed CAD begins with a validated starting point rather than a first attempt.

Defining where this phase sits only matters if the phase itself is generating the right kind of comparison. That depends on understanding what concept exploration actually is, and what it is not.

‍

How Is Concept Exploration Different From Generative Design and Topology Optimization?

Topology optimization and generative design are methods for generating a single high-performing geometry for one part, with full control over the optimization parameters and full traceability of the result. Concept exploration is a different layer entirely: it is the process of generating and comparing many candidate geometries, produced by any of several methods, against shared performance, cost, CO2, and manufacturability criteria before one is selected. A generative design run produces one optimized shape. A concept exploration process produces a ranked, quantified set of alternatives.

This distinction matters because the two are frequently confused, both in vendor messaging and in practice. A single topology optimization run, however well configured, only answers whether one region of material can be removed under one set of loads and constraints. It does not answer whether a different manufacturing route, a different load case interpretation, or a different design space definition would have produced a better outcome, because it was never asked to compare.

‍

‍

In practice, concept exploration typically uses topology optimization, topology weaving, or similar generative methods as the generation step inside a larger Design of Experiments sweep. The method that produces the geometry is one ingredient. The process that compares dozens of geometries against the same criteria is the phase this article is about. For a deeper look at the generation method itself, see Topology Optimization: The Complete 2026 Engineering Guide.

‍

Why Is the Concept Phase the Least Equipped Stage of Engineering?

The concept phase carries the highest downstream impact of any stage in mechanical engineering, yet it is consistently the least equipped with dedicated tools. In large organizations, R&T and Advanced Engineering teams formally own this phase, but the tools available, standard CAD, single-shot topology optimization, manual FEA, evaluate one geometry at a time and require hours of reconstruction between iterations. In other organizations, the design engineer owns the phase directly, but it competes with program management, supplier interfaces, and design reviews, and is compressed to whatever time survives those demands.

In both contexts, no single environment was built to generate, evaluate, and compare dozens of qualified variants on performance, manufacturability, cost, and carbon footprint at once, before detailed CAD begins. As a result, manufacturability, cost, and CO2 are typically discovered downstream, at the point where the geometry is already committed and correction is expensive, rather than at the point where it would still be cheap.

R&T teams in large OEMs have a dedicated innovation budget and a mandate to explore new methodologies, but they are still limited to comparing two or three manually modeled options within a program window. Mechanical engineers in other organizations face a sharper version of the same limitation. The concept exploration phase exists on paper, but the first geometry that fits the schedule becomes the concept, whether or not it is the best option available.

‍

What Concept Exploration Requires to Work in Practice

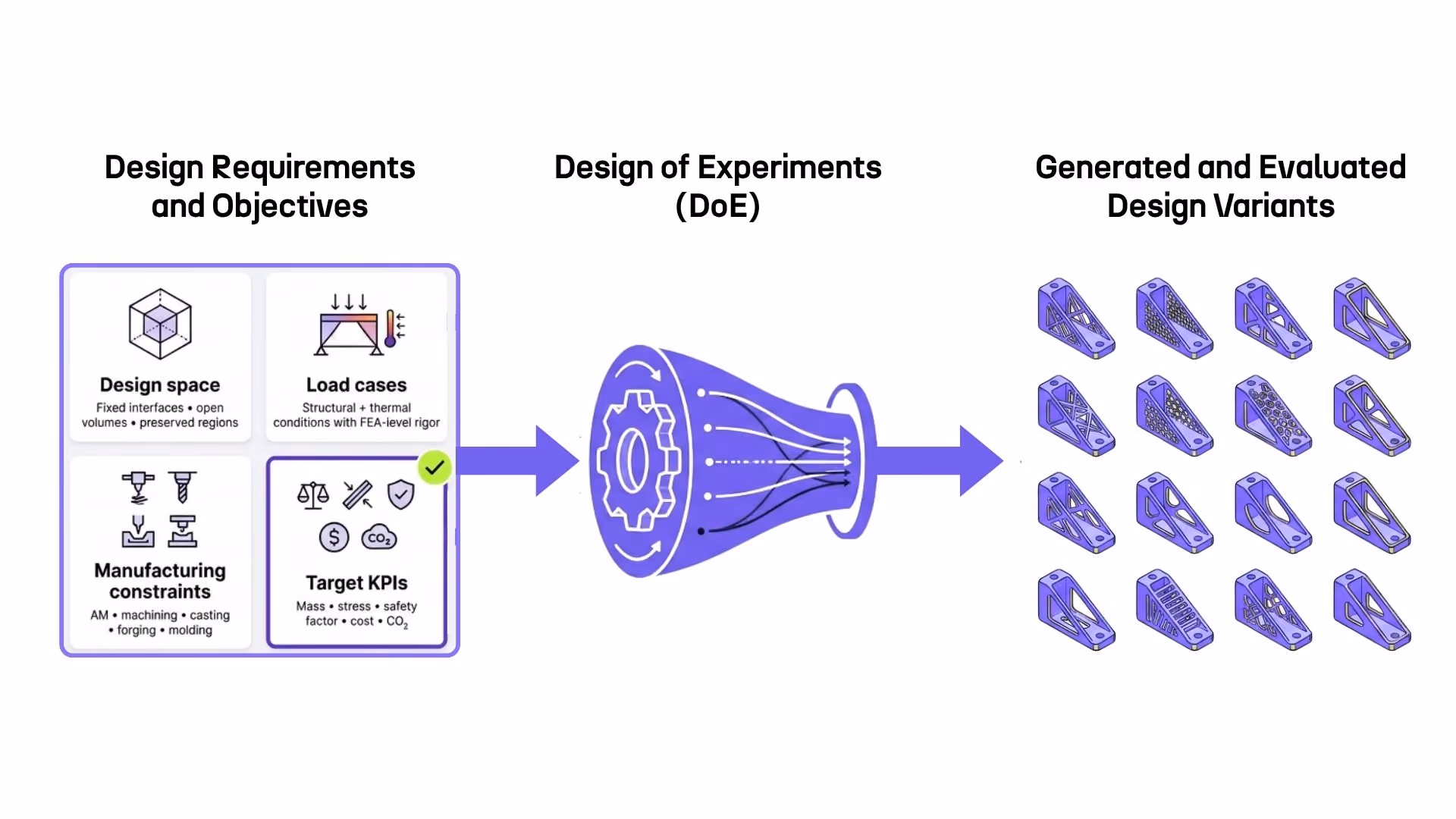

Concept exploration is not simply generating more geometries. It requires four elements defined before generation begins, and without them, additional geometries add volume, not decision quality. Design of Experiments (DoE), the method of systematically sweeping input parameters to populate the design space, depends entirely on how well these four elements are defined beforehand:

• Design space: which interfaces are fixed, which volumes are open to material redistribution, and which regions must be preserved for assembly or function.
• Load cases: the structural and thermal conditions each candidate must survive, stated with the same rigor a detailed FEA model would require.
• Manufacturing constraints: the limits of the intended production route, whether additive manufacturing, machining, casting, forging, or molding, applied during generation rather than filtered out afterward.
• Target KPIs: mass, stress, safety factor, cost, and CO2, evaluated on every candidate against the same criteria, concurrently rather than sequentially.

The fourth element is what actually turns generation into comparison. Without shared KPIs applied consistently across every candidate, more variants only mean more geometries to inspect manually, not a faster path to a decision.

A design space swept properly against these four elements can generate 50 to 100 or more evaluated variants in parallel, compared with the two or three concepts a manual workflow typically allows in the same window. The difference is not exploration for its own sake. It is the difference between selecting with data and committing by default.

‍

How Concept Exploration Works With Cognitive Design

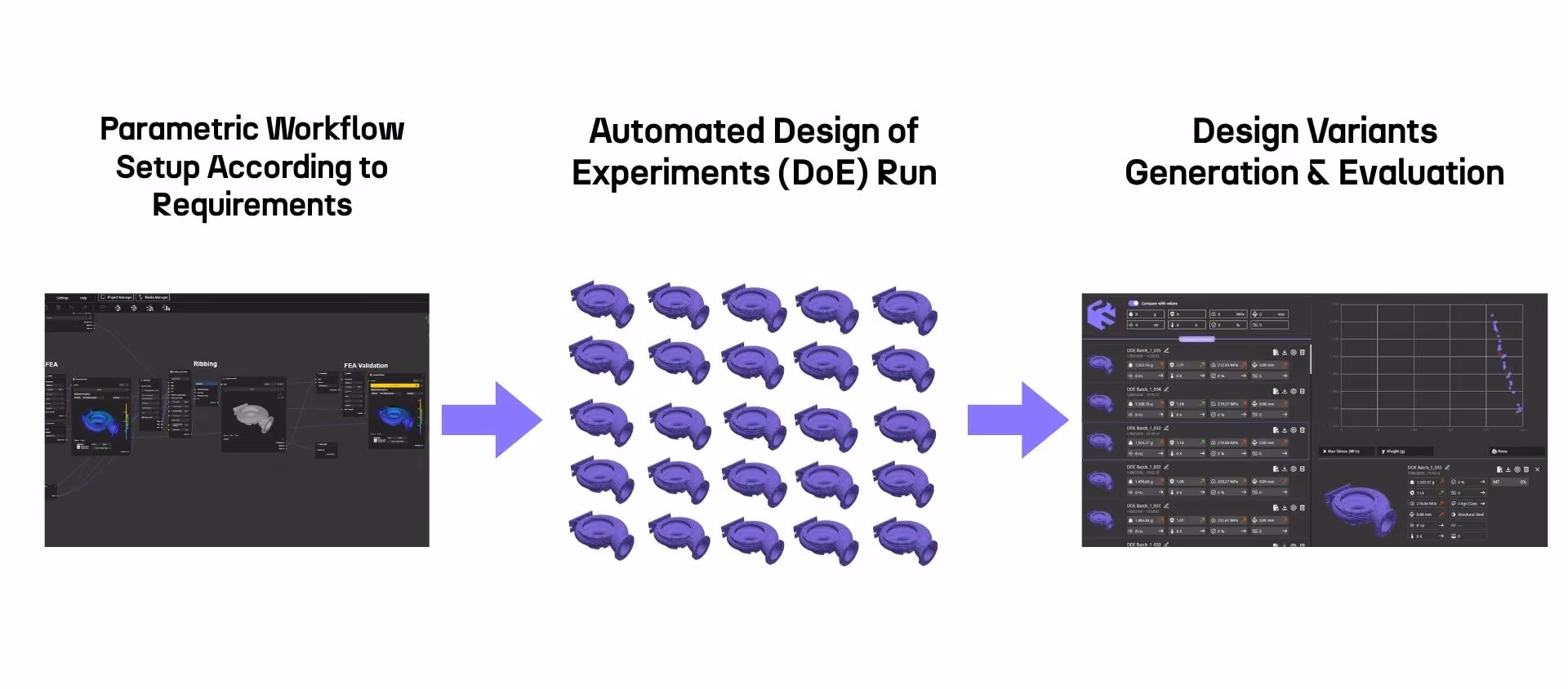

Cognitive Design applies concept exploration as an integrated workflow rather than a manual assembly of separate tools. Engineers define the design space, load cases, manufacturing constraints, and target KPIs once, and a Design of Experiments sweep generates 50 to 100 or more variants, each evaluated concurrently by generative design, manufacturing-driven design, and simulation-driven design. Every variant lands in the Design Explorer with its full KPI set, ready to compare. The engineer selects the best trade-off and exports the concept to the existing CAD environment through standard STEP files.

On a family of structural brackets for a commercial aircraft supplier, this approach cut concept exploration lead time by 80%, from weeks to hours, while reaching up to 40% mass reduction against the legacy machined baseline. Once the first workflow was validated, the same logic, duplicated and reconfigured, produced a fully validated second bracket variant in two hours rather than a further independent engineering cycle.

A separate program illustrates the same pattern at a different scale. Potez Aéronautique reduced concept design time by 85%, from 192 hours to 28 hours, on a Falcon 6X structural bracket, while cutting bracket mass by 50%, with a fully traceable, auditable optimization workflow suitable for airworthiness documentation.

Every result in both cases was computed by deterministic solvers rather than predicted by a probabilistic model. The AI orchestrates what to explore, sweeping the design space and manufacturing routes. The physics solvers compute what the result is. That distinction is what keeps the process auditable in regulated programs, where an engineer must be able to explain any output in a design review.

‍

Selecting a Concept: From Dozens of Variants to One Validated Starting Point

Generating many variants only creates value if the engineer can compare them on shared, quantified criteria rather than by inspecting geometries one at a time. A design exploration module records every generated variant automatically, with its mass, stress, safety factor, cost, CO2, and manufacturability score attached, so the engineer filters and ranks rather than rebuilds comparisons in a spreadsheet. The selected concept, along with the full parameter history behind it, exports directly into the existing CAD environment for detail design.

This step is where concept exploration becomes a defensible engineering decision rather than an exploratory exercise. Every variant is timestamped with its generation parameters, solver inputs, and KPI outputs, which supports design review documentation and, in regulated programs, certification audit trails. The engineer is choosing a concept, not simply inspecting a geometry.

Because the exported file uses standard STEP formats, the detailed design team continues working in whatever CAD environment the program already uses. Nothing about the downstream toolchain changes. Only the starting point does, and it starts closer to the final part than a first modeled attempt would.

‍

Why Concept Exploration Compounds Across Programs

A concept exploration workflow built for one part does not need to be rebuilt for the next variant in the same family. Once the design rules, load cases, and manufacturing constraints are encoded as a parametric template, the engineer generates every subsequent variant by changing input parameters only, without reconfiguring the workflow from scratch. What compounds is not just speed. It is the engineering judgment behind the first exploration, captured in a form the next engineer on the program can reuse directly.

Thales Alenia Space applied this pattern to a family of antenna reflector tripods supporting different satellite payload configurations. Automating more than 80 bracket variants on a single reusable workflow accelerated the full program workflow by 2x, turning what would otherwise be 80 independent engineering cycles into one validated methodology applied repeatedly.

This is also where concept exploration connects directly to institutional knowledge retention. A senior engineer's judgment about which parameters matter and which trade-offs to make is what usually leaves the organization when that engineer moves to a new program or a new employer. Encoded as a reusable workflow, that judgment stays available to the rest of the team. For a closer look at how this works in practice, see Reusable Engineering Workflows: The Complete 2026 Guide.

‍

Concept Exploration Across Industries

The core mechanics of concept exploration, defining a design space once and comparing variants on shared KPIs, apply the same way regardless of industry. What changes is which KPI carries the most weight and which regulatory context shapes the acceptable process. Aerospace and Space programs prioritize traceability and mass, Automotive prioritizes manufacturability at volume, and Industrial Machinery prioritizes cost per part and time to market.

• Aerospace: long program cycles make a late-cycle design reset costly in both schedule and recertification. Potez Aéronautique reduced concept lead time by 85% and bracket mass by 50% on a Falcon 6X structural bracket, with full traceability for airworthiness documentation.
• Space: every gram has a calculable launch cost, and qualification cannot be renegotiated once the launch window is set. T4i evaluated multiple TPMS lattice geometries for a CubeSat pressurized tank and accelerated the overall workflow 10x, reaching an 85% Von Mises stress reduction.
• Automotive: cost-per-part pressure means a DFM failure discovered at tooling stage is expensive to absorb. Embedding manufacturing constraints for die casting, or machining directly into the exploration loop catches these failures before a single prototype is built.
• Industrial Machinery: smaller engineering teams and shorter program cycles make cost estimation and manufacturability scoring at concept stage the primary lever for time to market, particularly across part families such as pump or valve variants.

‍

When Is a Full Concept Exploration Phase Not the Right Choice?

Concept exploration earns its cost when the design space is genuinely open: a new part, a new load case, a new manufacturing route, or a family of parts being built from scratch. It is not the right choice for a derivative change with minimal design freedom, such as adjusting a bolt pattern or a single interface dimension on a bracket that is already qualified and in production. In that situation, the upfront work of defining a full design space, load cases, and a Design of Experiments sweep can cost more than a direct, targeted modification would.

This distinction matters because concept exploration is sometimes presented as universally beneficial, which is not an honest description of the trade-off. Setting up a design space, manufacturing constraints, and target KPIs takes real engineering time before the first variant is generated. For a derivative part with one or two changing dimensions and no open questions about load path or manufacturing route, that setup cost is rarely recovered.

The judgment that matters is not whether concept exploration is powerful. It is whether the specific part in front of the engineer still has open questions worth answering with data, rather than one obvious next step.

‍

Conclusion

Concept exploration is not a rebrand of topology optimization or generative design. It is the layer above those methods that turns a single optimized geometry into a genuine choice between qualified alternatives, evaluated on the criteria that actually determine whether a part succeeds: performance, cost, CO2, and manufacturability, together rather than in sequence.
